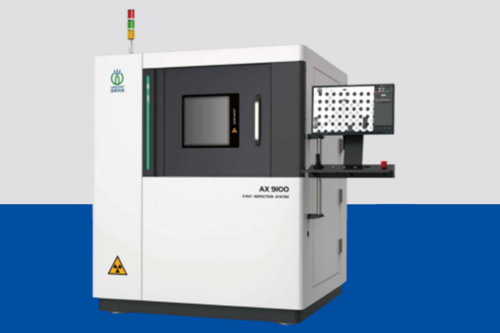

AX9100
AX9100
Product Features : An intelligent X-ray inspection system with an advanced 6-axis manipulator (X / Y1 / Y2 / Z1 / Z2 / T) and an FPD that tilts up to 60° for comprehensive, all-round inspection of multi-layered electronic components.
Description
Manufacturer : Ray Tech (Malaysia) Sdn Bhd
Application : Widely applied for BGA, CSP, Flip Chip, LED, Fuse, Diode, PCB, Semiconductor, Battery Industry, Small Metal Casting, Electronic Connector Module, Cables, Aerospace Components, Photovoltaic Industry, etc.
Product Features
- 6-Axis Linkage Control: Utilises an advanced 6-axis manipulator (X / Y1 / Y2 / Z1 / Z2 / T) providing high-precision, multi-directional movement for comprehensive, all-round part tracking.
- Deep Oblique Angle Tilting: FPD tilts up to a dramatic 60° angle for viewing deep, obscured areas of multi-layered components.
- High-Speed CNC Automation: Supports heavy-duty "Teach and Go" CNC automated programming routines, custom-made for batch automated inspection of electronic parts.
- Enhanced Imaging: Combines strong X-ray penetration capabilities with a High-Definition (HD) FPD and navigation system for rapid, crystal-clear product positioning.
- Ergonomic Design: Engineered with an adjustable console desk to match operator physical preferences. Includes fingerprint security and real-time radiation leakage monitoring.
Application Fields

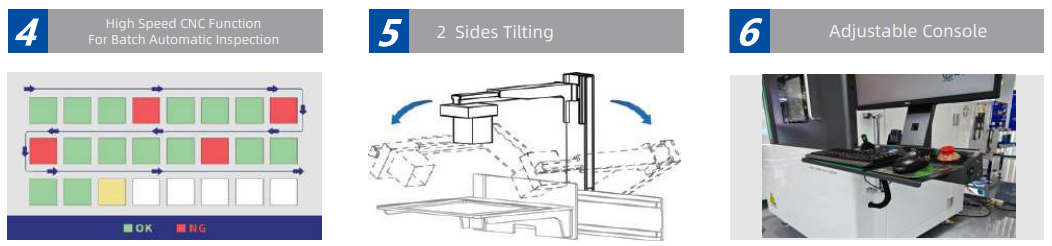

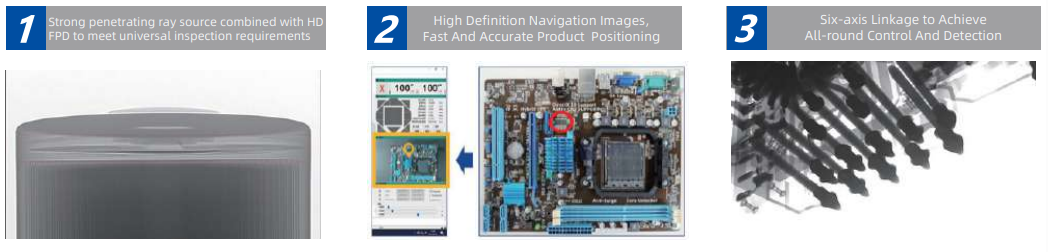

Functions and Features

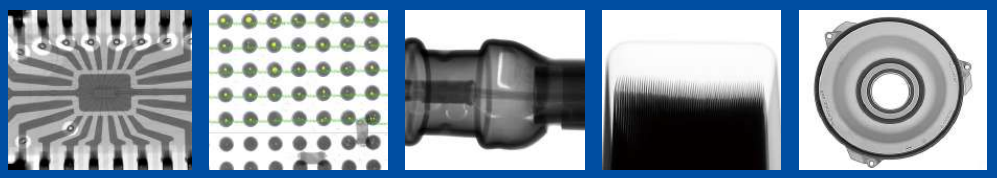

Inspection Images

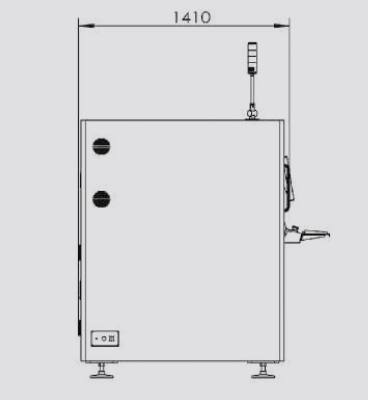

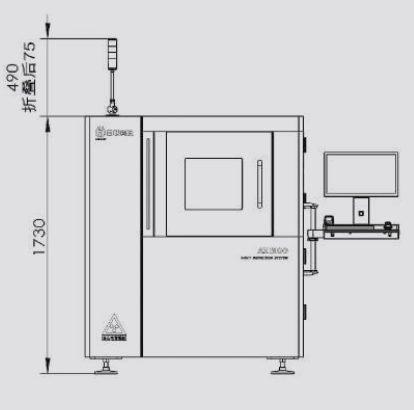

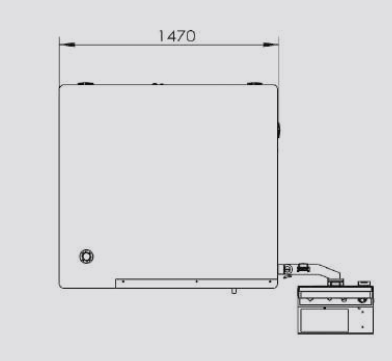

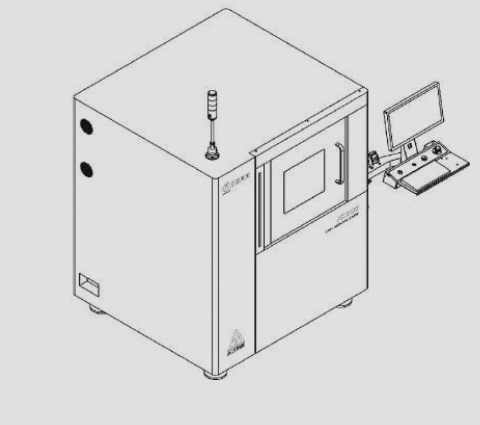

Dimensions and Appearance
Cabinet design with overall dimensions of 1470mm (W) × 1410mm (D) × 1730mm (H).
System Summary
| Footprint | 1470(W)×1410(D)×1805(H)mm |
| Machine Weight | 2100 kg |
| Power Supply | AC 110~220V, 50/60Hz |
| Plywood Packing Size | 1650(W)×2050(D)×2050(H)mm |
| Packing Weight | 2300 kg |
| Power Consumption | 3.5 kW |
X-Ray Tube
| Tube Type | Sealed |
| Voltage | 0–130kV (Adjustable) |
| Max. Power | 65W |
| Focus Spot Size | ≤7µm |
Imaging System
| Detector | Flat Panel Detector (FPD) |
| Effective Detection Area | 129×129 mm |
| Pixel Matrix | 1536×1536 (pixel) |
| Pixel Size | 84µm |
| Frame Rates | Max 30Hz |
| System Magnification | 1600X |
Software
| Auto-measuring | BGA Soldering Voids Auto-measuring and Support Data/Graphic Output |
| Multiple Measuring Tools | Support Measuring Distance, Angle, Diameter, Polygon, PTH filling rate, etc. |
| CNC Mode | CNC Programmable Inspection, Easy Operation and User Friendly |
| Real-time Display | Real-time Displaying the Working Data of Voltage, Current, Angle, Date, etc. |
| Navigation | Convenient Target Point Positioning System |
Motion Control System
| Movement Control | Joystick, Keypad & Mouse |
| Max. Loading Area / Weight | 650×520 mm / 10kg |
| Max. Inspection Area | 500×450 mm |
| Oblique Views | Max. ±60° tilting (FPD) |
| Manipulator | 6-axis with X / Y1 / Y2 / Z1 / Z2 / T (60°) |
Industrial PC
| Monitor | 24" FHD LCD Display |
| System OS | Windows 10, 64bit |
| Hard Disk | 1TB |
| RAM | 16GB |
| CPU Model | Intel i7 Processor |
Other Features
| Energy Saving | X-Ray Auto-off when it's out of work over than 5 minutes |
| Authority Management | Fingerprint Access Management System, and Support Password Accessing |
| Safety Operation | Electromagnetic Interlock, Warning Light |
| X-Ray Safety | <1µSv/h (Meets All International Standards) |
* Specifications are subject to change without notice. All trademarks are the property of the system maker.
