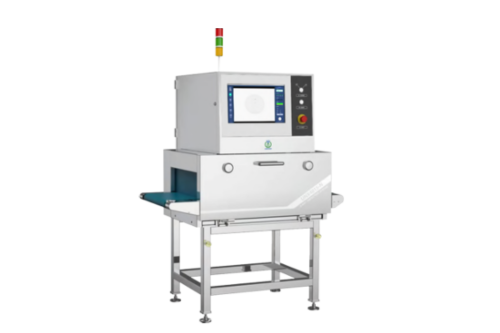

UNX 4015-N
UNX 4015-N
Application : Used to detect foreign matter contaminants in small bags for lightweight products, such as candy, fresh meat, prawn, vegetable, poultry, chocolates, pasta, instant noodles, bread, biscuits, dried fish, ham sausage, beef jerky, nuts, etc.
Description
Manufacturer : Ray Tech (Malaysia) Sdn Bhd
Application : Used to detect foreign matter contaminants in small bags for lightweight products, such as candy, fresh meat, prawn, vegetable, poultry, chocolates, pasta, instant noodles, bread, biscuits, dried fish, ham sausage, beef jerky, nuts, etc.
Key Features
- Easy to Operate: one button start & stop, optional default product.
- Provides high precision automatic foreign material detection. It can effectively detect metal, ceramic, glass, bone, shell and other foreign materials in the product.
- Monitoring, controlling, and improving procedures and outputs in manufacturing with SPC report.
- With deep learning of AI, the detection sensitivity reaches the industry's highest intelligent algorithm standard.

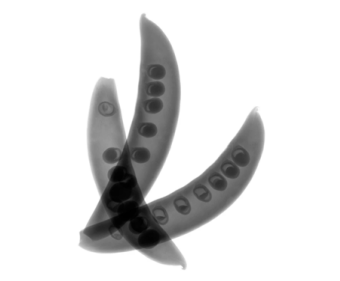

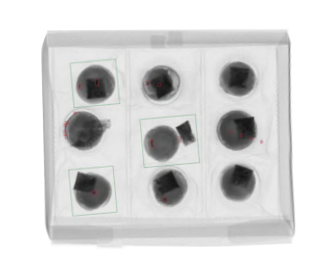

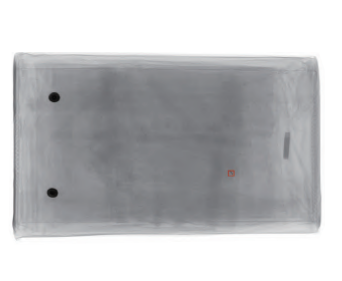

X-Ray Image

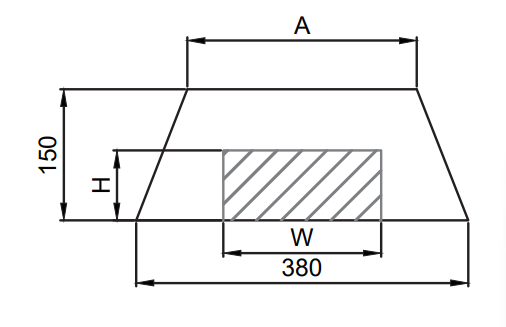

Inspection Area
Maximum object height varies with width across the inspection window (overall channel width 380mm, height up to 150mm):
Inspection Area (H × W)
| Height (H) mm | Width (W) mm |
| 150 | 260 |
| 100 | 300 |
| 50 | 340 |
| 10 | 370 |
| 0 | 380 |
System Summary
| Dimension | 1140(W)×1160(D)×1975(H)mm |
| Power Supply | AC 110/220V, 50/60Hz |
| Machine Weight | 450 kg |
| Channel Size | 400(W)×150(H)mm |
| Conveyor Speed | 10–70 m/min |
| Max. Loading Weight | 10 kg |
| Operating Temperature | 5°C – 40°C, RH < 80% |
X-Ray System
| X-Ray Voltage | 80kV |
| X-Ray Power | 210–350W |
| Detector | 0.1mm / 0.2mm / 0.4mm |
| X-Ray Emissions | <1µSv/h |
Detection Accuracy
| SUS Ball | ≥ Ø0.3mm |
| SUS Wire | ≥ Ø0.2×2mm |
| Glass Ball | ≥ Ø1.0mm |
| Ceramic Ball | ≥ Ø1.0mm |
Interface & Control
| Port | 1×LAN, 2×USB |
| Reject Solutions | Air jet, swiping arm, pushing rod, retracting belt, flipper, etc. |
| Human Machine Interface | 15.6" touchscreen, Windows 10 operating system |
Other
| IP Rating | Conveyor: IP66, Others: IP65 |
| X-Ray Emissions | <1µSv/h |
* Specifications are subject to change without notice. All trademarks are the property of the system maker.
