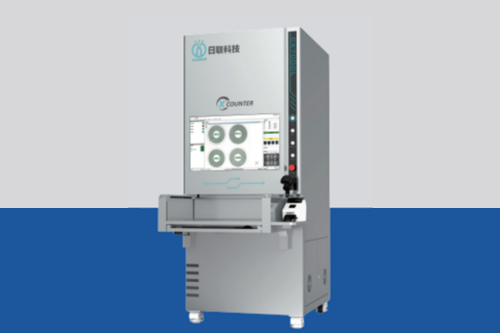

Product Features : An intelligent SMD component inward/outward counter capable of counting up to four 7" electronic tape reels in a single 10-second pass, maximising warehouse inventory throughput.
Description
Manufacturer : Ray Tech (Malaysia) Sdn Bhd
Product Features
- Four-Reel Quad Processing: Capable of counting up to four 7" electronic tape reels in a single 10-second pass, maximising warehouse inventory throughput.
- Reel Identification Sensors: Smart physical sensors embedded in the tray automatically detect reel layout placements to align counting fields accurately.
- AI Math & Labeling Integration: Uses identical deep-learning anti-interference math as the CX7000 to identify abnormal part gaps, and immediately creates outbound label strings through its QR software suite.
- Physical Design: Manual feeding loading platform matched with a high-speed automatic door and built-in real-time radiation safety monitors ensuring emissions stay ≤0.5µSv/h.
Component Counting Grid
- Reels & Passives (99.99% Accuracy): 01005 to 1206 micro-resistors/capacitors.
- Semiconductors & Packs: Transistors (99.99%), Loose pieces (99.99%), ESD/HSC protected materials (99.9%), Component tubes (100%), and JEDEC trays (100%).
Application Fields

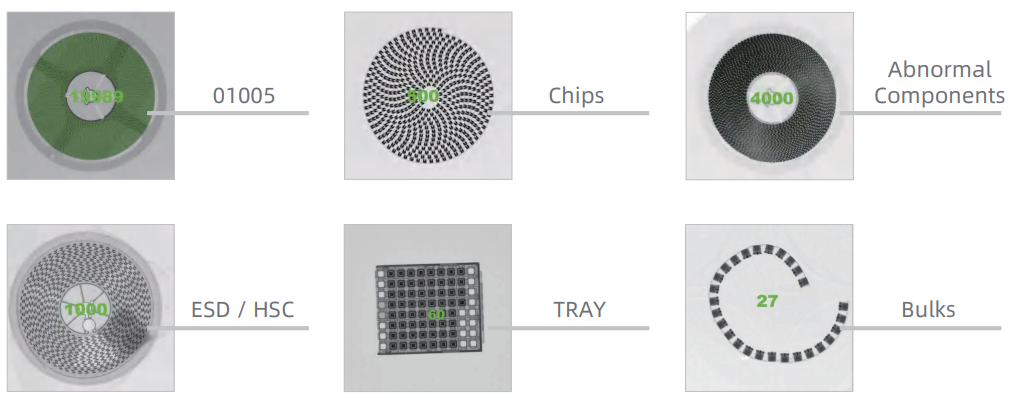

Reels — Accuracy
| 01005 | 99.99% |
| 0201 | 99.99% |
| 0402 | 99.99% |
| 0603 | 99.99% |
| 0805 | 99.99% |
| 1206 | 99.99% |
Other Components — Accuracy
| Transistors | 99.99% |
| Bulks | 99.99% |
| ESD Packages | 99.9% |
| Tubus | 100% |
| JEDEC Tray | 100% |
| Other Resistance & Capacity | 99.99% |

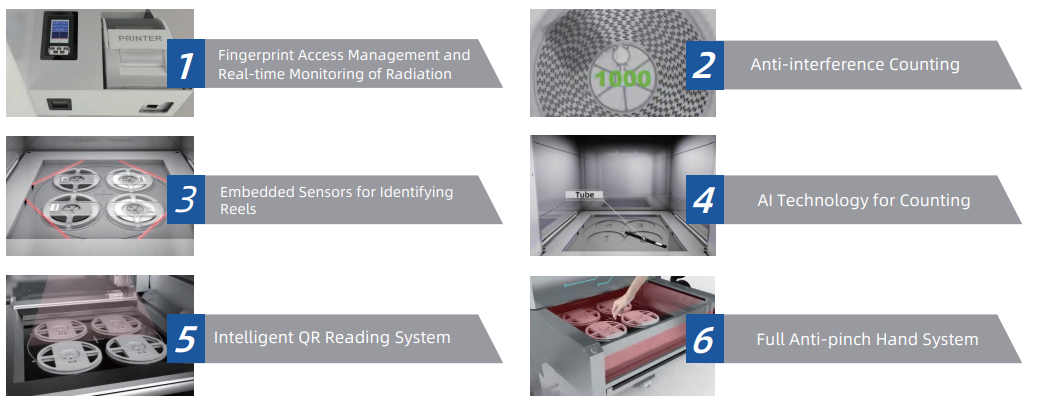

Functions and Features
Inspection Images

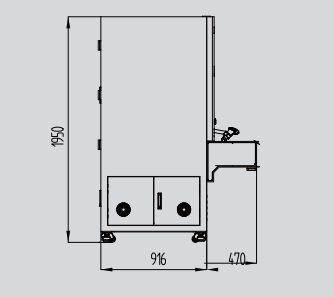

Dimensions and Appearance
System Summary
| Footprint | 800(W)×1380(D)×1950(H)mm |
| Machine Weight | 674 kg |
| Power Supply | AC 110/220V, 50/60Hz |
| Plywood Packing Size | 900(W)×1460(D)×2090(H)mm |
| Packing Weight | 746 kg |
| Power Consumption | Max. 1.5 kW |
X-Ray Tube
| Voltage | 50kV (80kV Optional) |
| Tube Type | Sealed |
| Current | 1000µA (80kV: 700µA) |
| Focus Spot Size | 0.07mm (80kV: 0.03mm) |
Imaging Detector
| Detector | Flat Panel Detector (FPD) |
| Effective Inspection Area | 430×430 mm |
| Pixel Matrix | 3072×3072 pixel |
| Pixel Size | 139µm |
| Frame Rates | 2 fps |
| AD Conversion | 16 bits |
Inspection Ability
| Tape & Reel Size | 7"–17" |
| Scan Height | ≤80mm |
| Inspection Min. Component | 01005 |
| Inspection Accuracy | ≥99.99% |
| Inspection Speed | <10s / Tape & Reel (7"–17"); <10s (7"×4 Tape & Reel) |
Industrial PC
| Monitor | 27" FHD LCD Display |
| System OS | Windows 10, 64bit |
| Hard Disk | 256G (SSD) + 1T (HDD) |
| RAM | 16 GB |
| CPU Model | Intel i7 Processor |
| Connectivity | Supports connection with MES, ERP and WMS intelligent storage systems |
Other Features
| Door Open | Auto-door, Anti-Pinch |
| Radiation Monitoring | Safety Protection, Real-time Monitoring of Radiation |
| Accessories | Embedded barcode camera reader, hand-held barcode scanner |
| Feeding Method | Manual |
| X-Ray Safety | ≤0.5µSv/h (Meets All International Standards) |
| Authority Management | Fingerprint Access Management System, and Support Password Accessing |
