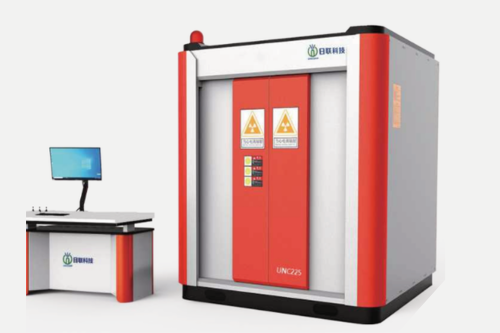

UNC225
UNC225
Description
Manufacturer : Ray Tech (Malaysia) Sdn Bhd
Application : Mainly used in metal castings, hardware products, plastic products, refractory materials, resin materials, composite materials, ceramic body and welding metal parts and other small products for non-destructive testing.
Product Features : A heavy-duty digital radiography system built around a high-penetration 225kV split X-ray tube and a high-sensitivity Amorphous Silicon flat panel detector for inspecting dense metal castings and welds.
Key Features
- Powered by a high-penetration 225kV split X-ray tube featuring dual focal spots (0.4mm / 1.0mm) and an adjustable power rating up to 1800W for superior metal penetration (up to 25mm of steel or 150mm of aluminium).
- Utilises a highly sensitive 2816×2816 pixel matrix Amorphous Silicon imaging detector with a 430×430mm effective detection area.
- Built with dual electric safety interlock doors and a flexible ±15° swinging detector arm combined with a 360° heavy-load rotation table (up to 100kg capacity).
- Comes standard with an ergonomic mobile operating console with lift adjustment and automated CNC detection routines.
Application Field
Mainly used in metal castings, hardware products, plastic products, refractory materials, resin materials, composite materials, ceramic body and welding metal parts and other small products for non-destructive testing.

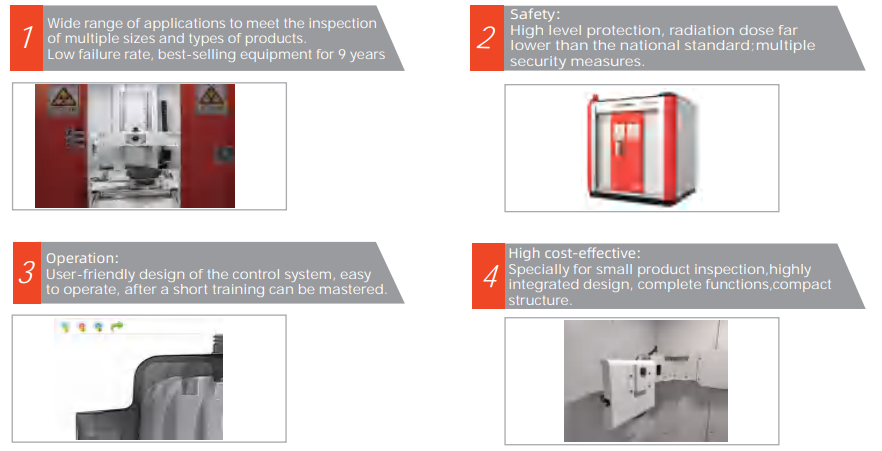

Functional Characteristics

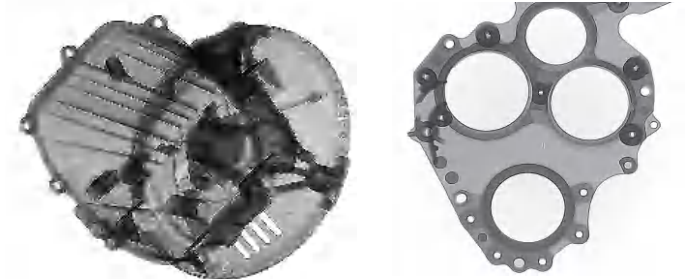

Inspection Images

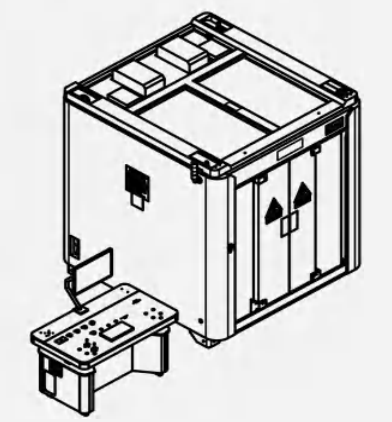

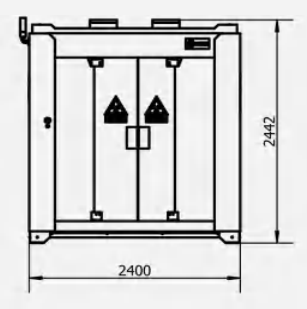

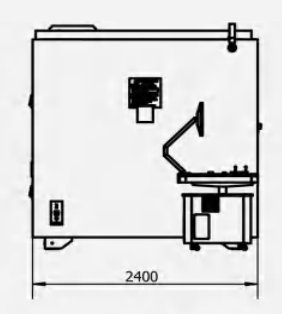

Dimensions and Appearance
| Footprint | 2400(W)×2400(D)×2442(H)mm |
| Machine Weight | 5000 kg |
| Maximum Penetration | Class A imaging standard 150mm(AL) / 25mm(Q235) |
| Power Supply | 380V AC, 50Hz |
| Power Consumption | 9 kW |
| Maximum Focal Length | 1350 mm |
| X-Ray Tube Type | Split Tube |
| Voltage | 225kV |
| Minimum Focal Spot | 0.4mm / 1.0mm |
| Power Consumption | 800W / 1800W |
| Detector | Amorphous Silicon |
| Effective Detection Area | 430×430 mm |
| Pixel Size | 154µm |
| Pixel Matrix | 2816×2816 |
| Motion Control Mode | CNC Automatic / Manual |
| Detecting Arm Swing Angle | ±15° |
| Rotation Angle of Load Table | ±360° |
| Maximum Loading Weight | 100 kg |
| Maximum Inspection Area | φ600×800 mm |
| Mechanism Speed | ≥70 mm/s |
| ASTM Standard | ASTM standard atlas can be used for comparison and viewing |
| Void Measurement | Automatically measure the porosity per unit area |
| Diversified Detection | Distance, angle, diameter and polygon geometry measurement |
| CNC Automatic | CNC automatic detection |
| Door Opening | Electric Double Doors |
| Radiation Dose | <1µSv/h |
| Console | Mobile operating table with lift adjustment |
| Device Management | Different management levels |
