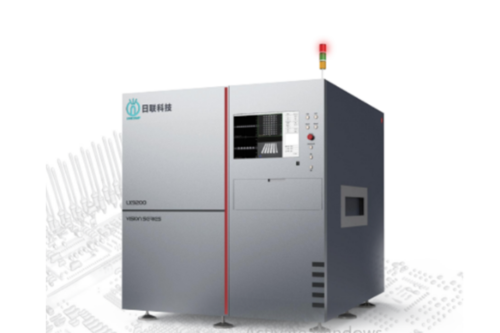

LX9200
LX9200
Product Features : A high-speed inline 3D automated computed tomography system that connects directly into standard SMT conveyor setups, offering fully hands-free, touchless real-time 3D testing with 360° circular CT imaging.
Description
Manufacturer : Ray Tech (Malaysia) Sdn Bhd
Product Features
- Continuous In-Line High-Speed Tracking: Connects directly into standard automated SMT conveyor setups, offering fully hands-free, touchless real-time 3D testing.
- 360° Circular CT Imaging: Employs multi-angle camera/detector capture to form full 360° 3D rendering images and detailed 3D slice views.
- Smooth Flying Capture Motion: Driven by a high-precision linear motor and linear encoder system to acquire image data seamlessly while moving, cutting structural cycle delays.
- Automatic Resolution Switching: Adapts image resolutions automatically across standard parameters (9µm, 12µm, 18µm, 24µm, 30µm) down to ultra-fine optional settings of 3µm or 6µm.
- Dual Side Inspection Slicing: Software generates immediate XY slice images to evaluate multi-layer boards on different z-axis depths.
Application Area
- PCB / PCBA
- FPC & Module
- 3C Electronics
- Auto Electronics
- W/B, D/B
- Lithium Battery

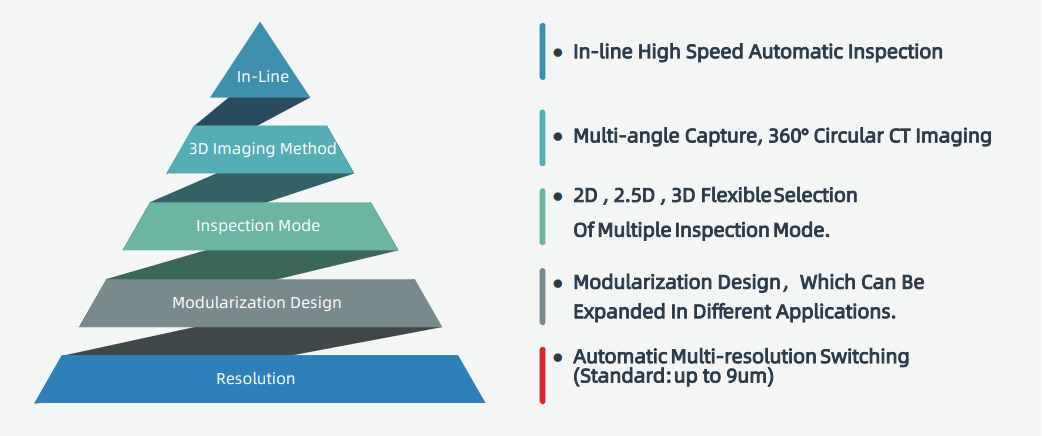

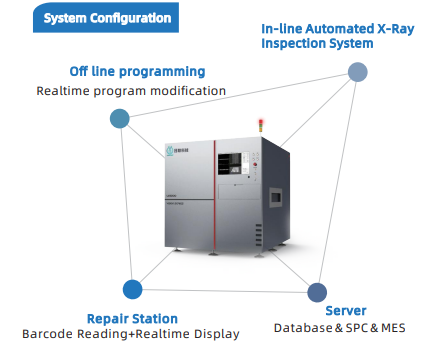

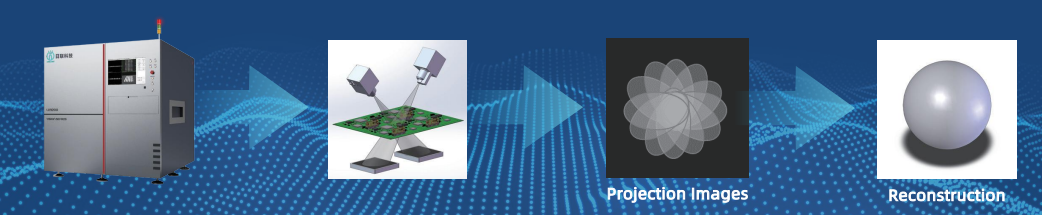

System Overview

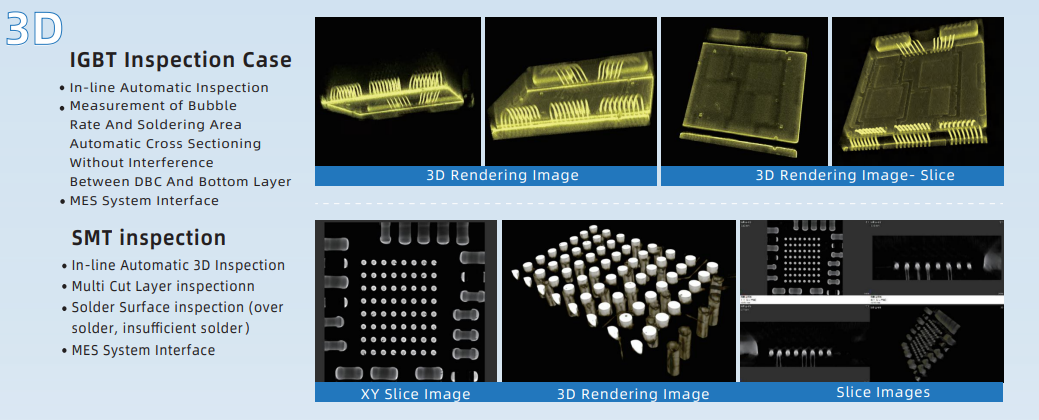

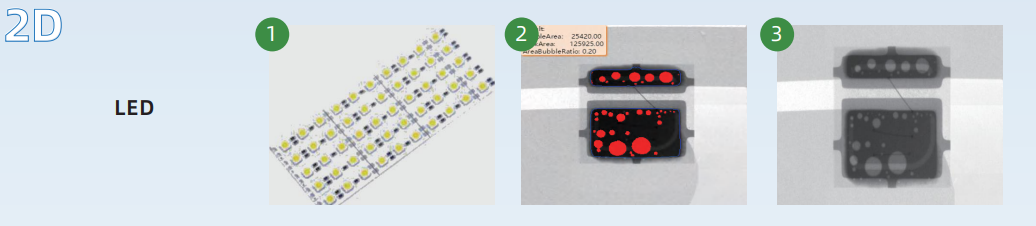

Application Cases

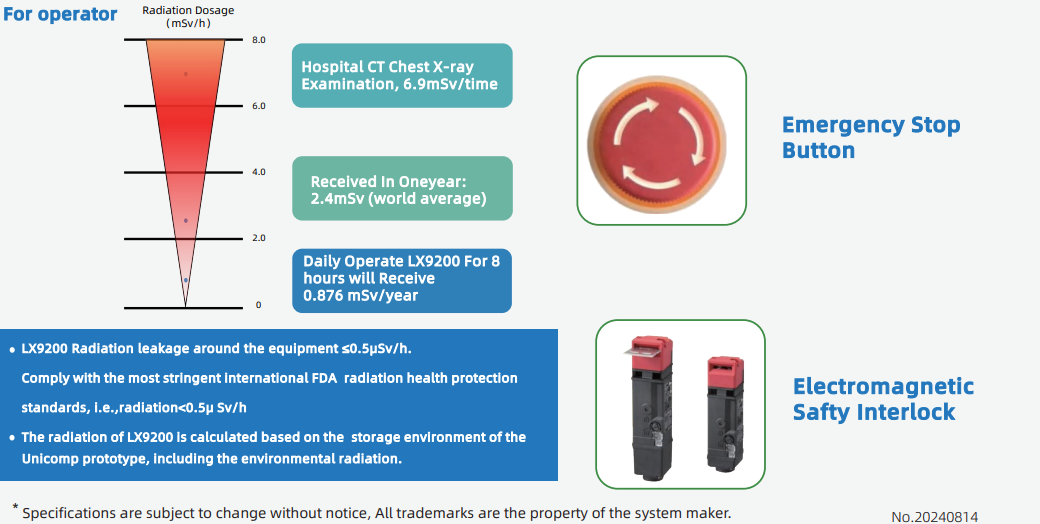

Safety Protection

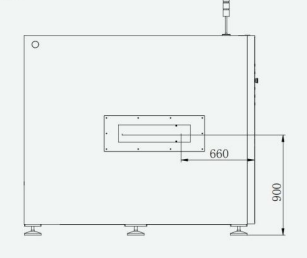

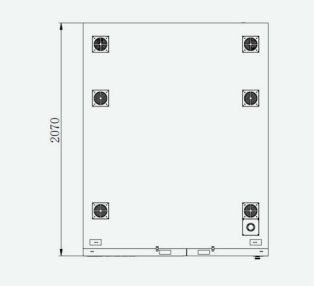

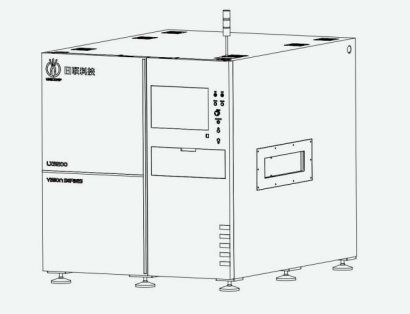

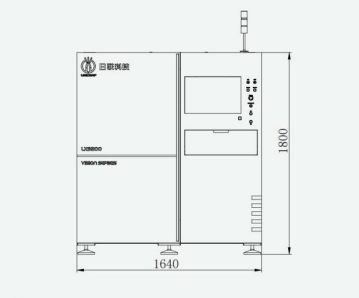

Dimensions and Appearance
Application
| Inspection Object | BGA, CSP, SOP, QFP, QFN, POP, inserted components, chips, T/H, Press-fit CN, IGBT, etc. |
| Inspection Items | Missing, misalignment, void, open, non-wet, shifting, foreign object, bridging, tombstone, insufficient / excess solder, solder ball, wrong polarity, etc. |
Imaging System
| Imaging Method | 2D, 2.5D, 3D (All in one) |
| X-Ray Source | Sealed tube (Max. 130kV / 65W) |
| Detector | High resolution FPD (flat panel detector) |
| Image Resolution | 9µm, 12µm, 18µm, 24µm, 30µm (option 3µm or 6µm) |
| Camera | CCD camera |
PCBA
| Conveyor Height | 900±50mm |
| Inspection Area | 3D: 510×670 mm; 2D: 510×730 mm |
| Weight | Max. 2kg (option 5kg) |
| Clearance | Top: 70mm; Bottom: 40mm @ 30µm |
Main Body
| Power Supply Voltage | 110–220V |
| Power Supply Frequency | 50/60Hz |
| Air Pressure, Capacity | 0.4–0.6 MPa |
| Dimensions | 1640(W)×2070(D)×1800(H)mm |
| Weight | 3710 kg |
| Motion | High speed smooth flying capture (high precision linear motor + linear encoder) |
| CT Mode | Planar CT |
| Radiations | <0.5µSv/h |
* Specifications are subject to change without notice. All trademarks are the property of the system maker.
