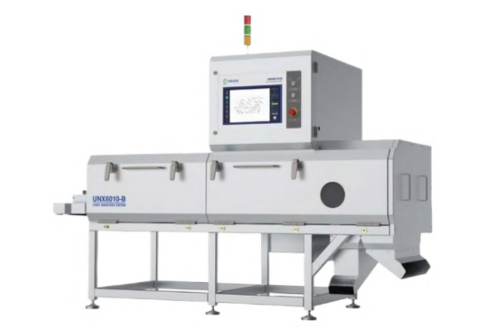

UNX 6010-B
UNX 6010-B
Application : Utilises a wider 600mm channel for high-throughput raw material handling where loose foods are processed in large volumes before packaging.
Description
Manufacturer : Ray Tech (Malaysia) Sdn Bhd
Application :
- Utilises a wider 600mm channel for high-throughput raw material handling where loose foods are processed in large volumes before packaging.
- Common industry examples include frozen asparagus, raw chicken, bulk nuts, dried beans, seeds, seasonings, and loose frozen agricultural products.
Key Features
- Easy to Operate: one button start & stop, optional default product.
- Provides high precision automatic foreign material detection. It can effectively detect metal, ceramic, glass, bone, shell and other foreign materials in the product.
- Monitoring, controlling, and improving procedures and outputs in manufacturing with SPC report.
- With deep learning of AI, the detection sensitivity reaches the industry's highest intelligent algorithm standard.
X-Ray Image
Inspection Area
Maximum object height varies with width across the inspection window (overall channel width 380mm, height up to 150mm):
Inspection Area (H × W)
| Height (H) mm | Width (W) mm |
| 150 | 260 |
| 100 | 300 |
| 50 | 340 |
| 10 | 370 |
| 0 | 380 |
Specifications
| Dimension | 2495(L)×1285(W)×2075(H)mm |
| Power Supply | AC 110/220V, 50/60Hz |
| Machine Weight | 700 kg |
| X-Ray Tube Voltage | 80kV / 350W |
| Detector | 0.4mm / TDI |
| Channel Size | 600(W)×100(H)mm |
| Conveyor Speed | 10–120 m/min |
| Max. Loading Weight | 10 kg |
| Operating Temperature | 5°C – 40°C, RH < 80% |
| Human Machine Interface | 17.3" touchscreen, Windows 10 operating system |
| Reject Solutions | Multiple units of air gun |
| Port | 1×LAN, 2×USB |
Detection Accuracy
| SUS Ball | ≥ Ø0.3mm |
| SUS Wire | ≥ Ø0.2×2mm |
| Glass Ball | ≥ Ø1.0mm |
| Ceramic Ball | ≥ Ø1.0mm |
Other
| IP Rating | Conveyor: IP66, Others: IP65 |
| X-Ray Emissions | <1µSv/h |
* Specifications are subject to change without notice. All trademarks are the property of the system maker.
