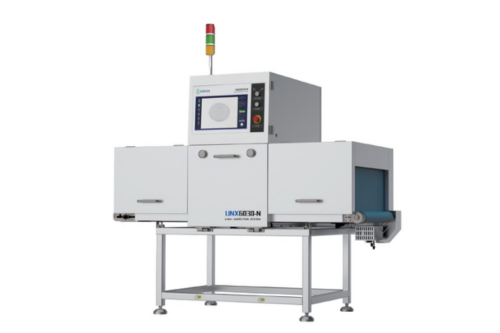

UNX 6030-N
UNX 6030-N
Application : Designed for oversized, heavy-payload food packaging and bulk commercial food shipments weighing up to 25 kg, optimised for heavy-duty production environments requiring wide tunnel inspection clearances.
Description
Manufacturer : Ray Tech (Malaysia) Sdn Bhd
Application :
- Designed for oversized, heavy-payload food packaging and bulk commercial food shipments weighing up to 25 kg.
- Optimised for heavy-duty production environments requiring wide tunnel inspection clearances.
- Common industry examples include large 10kg to 25kg commercial bags or crates of rice, flour, grains, sugar, big frozen meat blocks, large steaks, and commercial bakery trays.
Key Features
- Easy to Operate: one button start & stop, optional default product.
- Provides high precision automatic foreign material detection. It can effectively detect metal, ceramic, glass, bone, shell and other foreign materials in the product.
- Monitoring, controlling, and improving procedures and outputs in manufacturing with SPC report.
- With deep learning of AI, the detection sensitivity reaches the industry's highest intelligent algorithm standard.

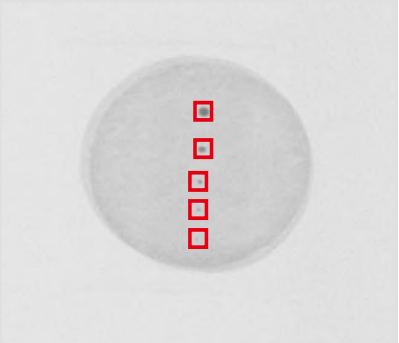

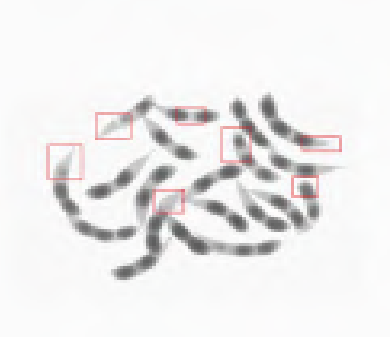

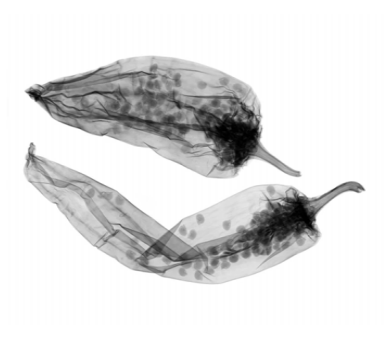

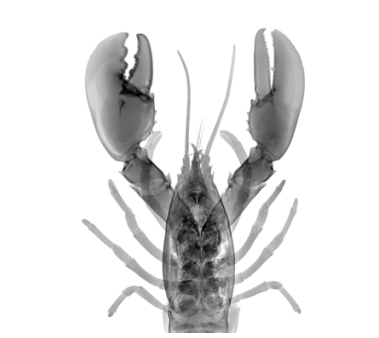

X-Ray Image

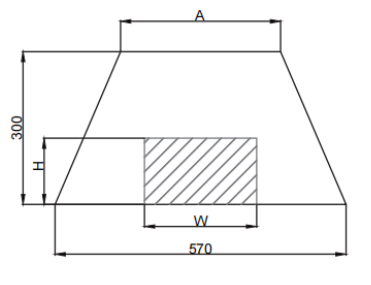

Inspection Area
Maximum object height varies with width across the inspection window (overall channel width 570mm, height up to 300mm):
Inspection Area (H × W)
| Height (H) mm | Width (W) mm |
| 300 | 315 |
| 200 | 400 |
| 100 | 485 |
| 50 | 530 |
| 10 | 560 |
| 0 | 570 |
Specifications
| Dimension | 2005(W)×1280(D)×2195(H)mm |
| Power Supply | AC 110/220V, 50/60Hz |
| Machine Weight | 700 kg |
| X-Ray Voltage | 100–120kV / 350–480W |
| Detector | 0.4mm |
| Tunnel Size | 600(W)×300(H)mm |
| Conveyor Speed | 10–60 m/min, 10–40 m/min (heavy load) |
| Max. Loading Weight | 25 kg |
| Operating Temperature | 5°C – 40°C, RH < 80% |
| Human Machine Interface | 17.3" touchscreen, Windows 10 operating system |
| Reject Solutions | Pushing rod, retracting belt, flipper, etc. |
| Port | 1×LAN, 2×USB |
Detection Accuracy
| SUS Ball | ≥ Ø0.3mm |
| SUS Wire | ≥ Ø0.2×2mm |
| Glass Ball | ≥ Ø1.0mm |
| Ceramic Ball | ≥ Ø1.0mm |
Other
| IP Rating | Conveyor: IP66, Others: IP65 |
| X-Ray Emissions | <1µSv/h |
* Specifications are subject to change without notice. All trademarks are the property of the system maker.
