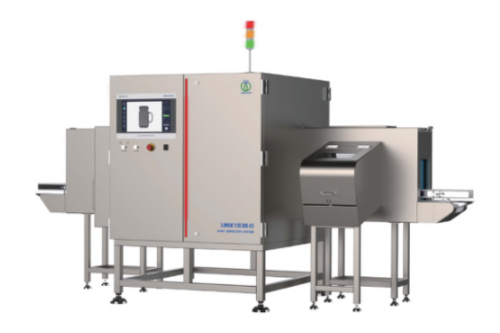

UNX 1830-D
UNX 1830-D
Application : Specifically optimised for rigid upright containers such as bottles, jars, and tall cans, with 360° multi-beam detection and simultaneous liquid level measurement.
Description
Manufacturer : Ray Tech (Malaysia) Sdn Bhd
Application :
- Specifically optimised for rigid upright containers such as bottles, jars, and tall cans.
- Features a 360° multi-beam system to detect contaminants at the bottom or hidden within the contours of cylindrical glass or plastic bodies.
- Simultaneously performs liquid level measurement alongside foreign body detection to ensure filling consistency.
- Common industry examples include bottled beverages, sauces, glass condiment jars, canned goods, and baby food containers.
Key Features
- Easy to Operate: one button start & stop, optional default product.
- Multiple beam X-ray systems, 360° no dead angle detection.
- Liquid level measurement.
- Monitoring, controlling, and improving procedures and outputs in manufacturing with SPC report.
- With deep learning of AI, the detection sensitivity reaches the industry's highest intelligent algorithm standard.
X-Ray Image

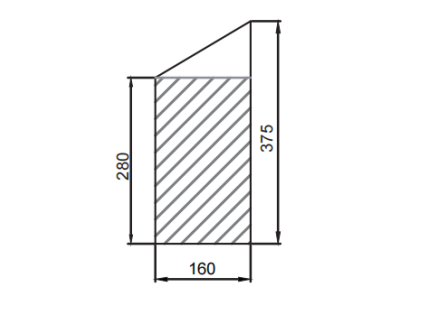

Inspection Area
Inspection window of 160mm (W) × 280mm (H), with a maximum object height of 375mm.
Specifications
| Dimension | 3645(L)×1425(W)×2165(H)mm |
| Power Supply | AC 110/220V, 50/60Hz |
| Machine Weight | 1200 kg |
| X-Ray Tube Voltage | 120kV / 480W |
| Detector | 0.2mm |
| Tunnel Size | 180(W)×300(H)mm |
| Conveyor Speed | 10–90 m/min |
| Max. Loading Weight | 10 kg |
| Human Machine Interface | 17.3" touchscreen, Windows 10 operating system |
| Port | 1×LAN, 2×USB |
| Reject Solutions | Pushing rod |
Detection Accuracy
| SUS Ball | ≥ Ø0.3mm |
| SUS Wire | ≥ Ø0.2×2mm |
| Glass Ball | ≥ Ø1.0mm |
| Ceramic Ball | ≥ Ø1.0mm |
Other
| IP Rating | Conveyor: IP66, Others: IP65 |
| X-Ray Emissions | <1µSv/h |
* Specifications are subject to change without notice. All trademarks are the property of the system maker.
