UNCT3500
UNCT3500
Description
Manufacturer : Ray Tech (Malaysia) Sdn Bhd

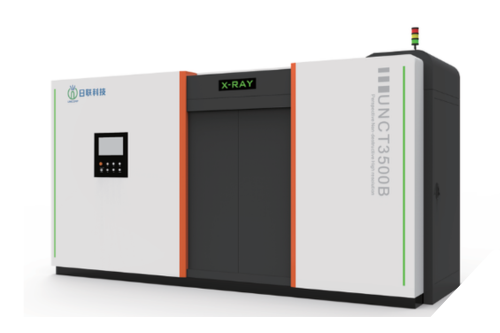

Equipment Introduction : The UNCT3500 is a self-shielding multi-purpose industrial CT computed tomography system that can be used across a variety of sizes and materials to meet the application requirements of different industries for industrial CT. It is mainly used in the precision testing of medium and large products such as metal castings and non-ferrous metals, lithium battery / new energy battery modules, non-metallic workpieces, composite materials, etc.
Product Features : A heavy-duty walk-in CT system with a dual-source configuration and an independent operator console for comprehensive DR and CT inspection of large samples.
Key Features
- A massive, self-shielding, heavy-duty system featuring a dual-source configuration capability — a micro-focus 225kV open tube with a <4µm spot and a heavy-penetration 450kV tube paired with a specialised CdWO₄ linear array detector.
- Built as a walk-in, self-shielded radiation vault with an independent operator console workstation.
- Handles a massive payload capacity up to 100kg over an extensive inspection range of φ600×800mm at scanning velocities up to 44cm/s.
- Bundled with a full engineering suite containing coordinate metrology, design parts/objects CAD comparison, volume grid calculations, transfer field simulation, and structural mechanics modeling.
Function Application
Equipment Features
- Precision Inspection Excellence: Featuring an advanced dual-source and dual-detector system for versatile applications, delivering industry-leading detection capabilities.
- Powerful Capabilities: Dual DR/CT imaging modes for comprehensive inspection, an extended detection envelope accommodating diverse sample sizes, and maximum detection capability with minimised operational expense.
- High Security: High-grade protection with radiation far below the national standard, set up with multiple safety measures.
- Easy Operation: User-friendly control system design, easy to operate and quick to master after a short training.

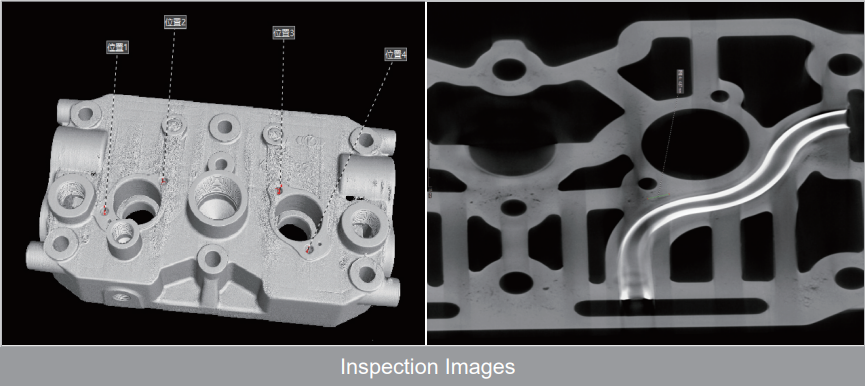

Inspection Images
Dimensions and Appearance

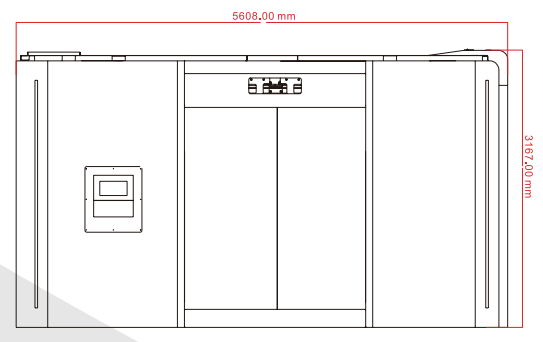

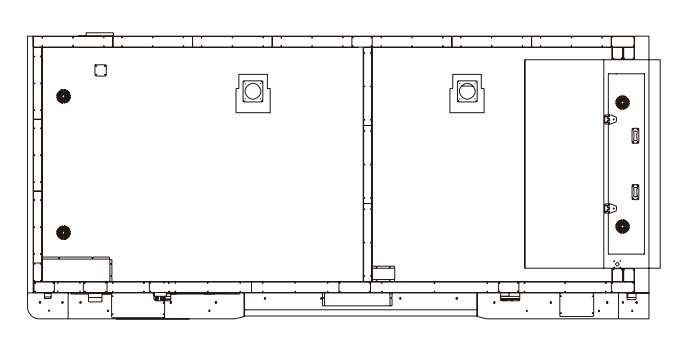

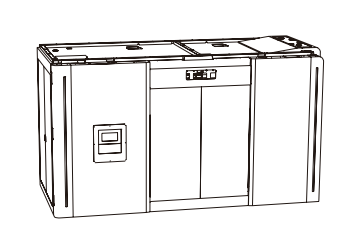

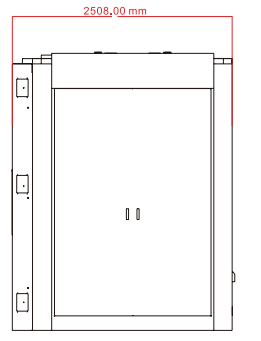

Self-shielded walk-in cabinet design with overall dimensions of 5608mm (W) × 2508mm (D) × 3167mm (H).
| Dimension | 5608(W)×2508(D)×3167(H)mm |
| Weight | 35000 kg |
| Operator Console | Independent Operator Console |
| Power Supply Voltage | 380V AC, 50Hz |
| Power | 15 kW |
| X-Ray Tube Type | Open Tube |
| Tube Voltage | 225kV |
| Focal Spot Size | <4µm |
| Tube Power | 500W |
| X-Ray Tube Type | Open Tube |
| Tube Voltage | 450kV |
| Focal Spot Size | 0.4 / 1.0mm (EN12543) |
| Tube Power | 1500W |
| Detector | Amorphous Silicon (a-Si) |
| Effective Imaging Area | 427×427 mm |
| Pixel Size | 139µm |
| Pixel Matrix | 3072×3072 |
| Detector | CdWO₄ |
| Effective Scanning Length | 614 mm |
| Pixel Size | 0.2mm |
| Maximum Scan Velocity | 44 cm/s |
| Maximum Inspection Range | φ600×800 mm |
| Maximum Payload Capacity | 100 kg |

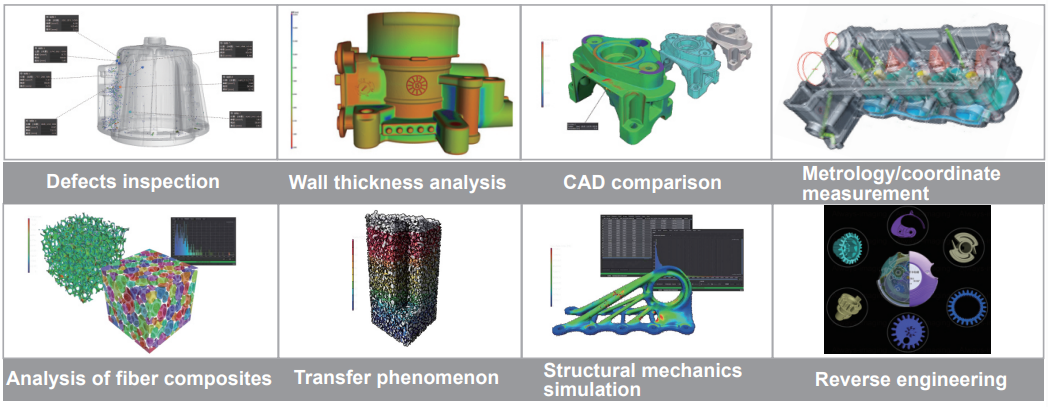

| Available Modules | Coordinate measurement, design parts/objects comparison, wall thickness analysis, pore inclusion analysis, fiber composite material analysis, extended version pore/inclusion analysis, manufacturing geometry correction, volume grid calculation, structural mechanics simulation, transfer field simulation and other functions. |
