Description
Manufacturer : Ray Tech (Malaysia) Sdn Bhd

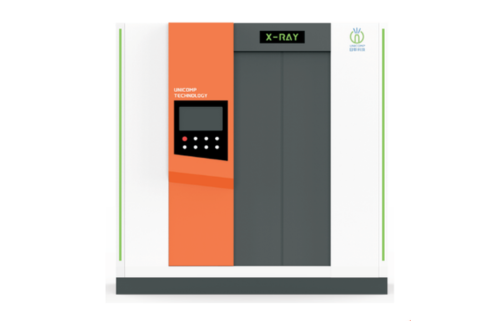

Equipment Introduction : The UNCT2200 is a compact industrial CT inspection system that offers high precision and can be utilised across various industries to meet their specific inspection requirements. It is primarily employed for small metal castings, non-ferrous metals, lithium battery cells, chips, electronic components, rock samples, cores, soils, fossils, composite materials, biological samples and other detection purposes.
Product Features : A compact industrial CT system built around an enclosed micro-focus 130kV X-ray source and a high-resolution Amorphous Silicon imaging system for DR and CT dual imaging.
Key Features
- Features an enclosed micro-focus 130kV X-ray source with an ultra-sharp 7µm focal spot size, delivering a high spatial resolution of 10µm.
- Employs a high-resolution 3072×3072 Amorphous Silicon imaging system.
- Offers a space-saving cabinet footprint while supporting a 15kg payload capacity table with standard Cone Beam Computed Tomography (CBCT) scan coverage of 300×280mm.

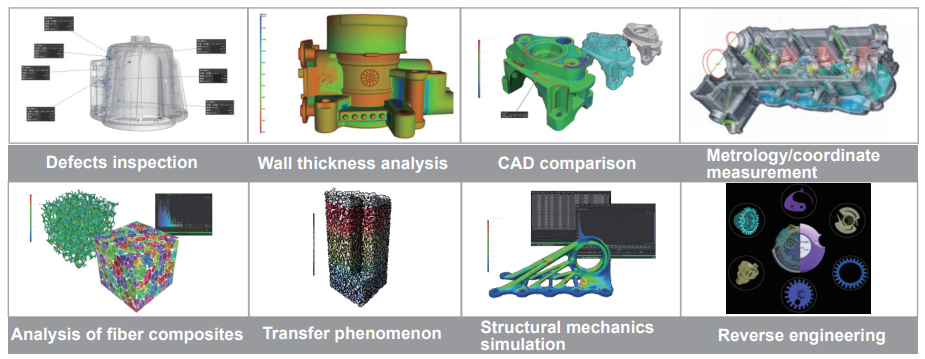

- Software modules include comprehensive 3D void/pore inclusion analysis, actual-to-CAD variance comparison, and wall thickness calculation.
Function Application
Equipment Features
- Powerful Capabilities: DR and CT dual imaging detection function; 3D scanning, data reconstruction and analysis.
- High Security: High-grade protection with radiation far below the national standard, set up with multiple safety measures.
- Easy Operation: User-friendly control system design, easy to operate and quick to master after a short training.
- Cost-Effective: Multi-application compatibility for diverse inspection needs, with a highly integrated design and optimised footprint.

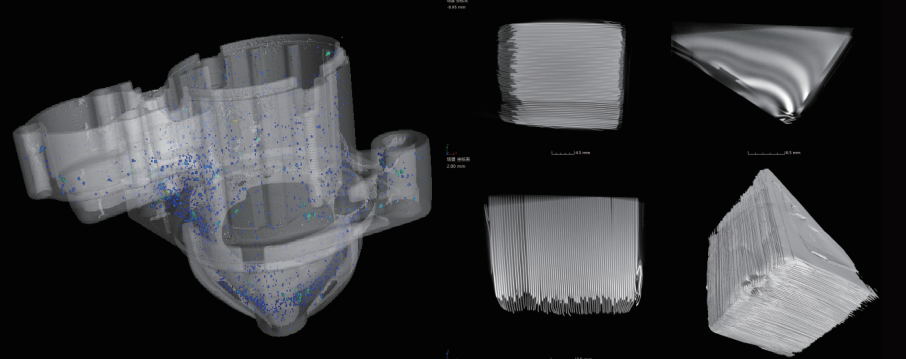

Inspection Images

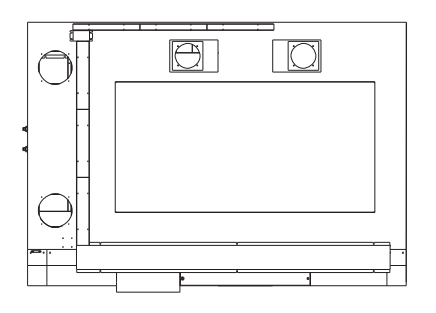

Dimensions and Appearance

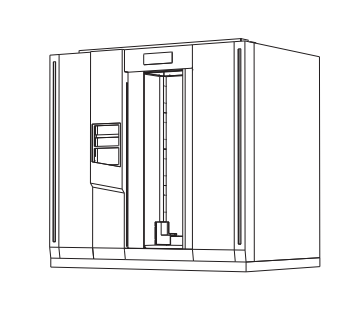

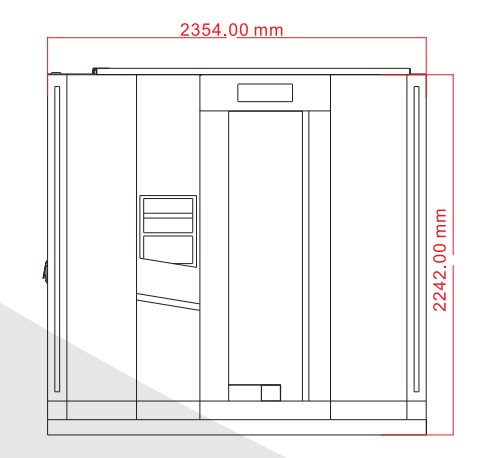

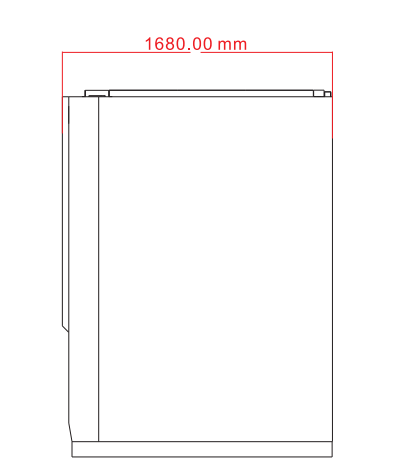

Compact cabinet design with overall dimensions of 2354mm (W) × 1680mm (D) × 2242mm (H).
| Dimension | 2354(W)×1680(D)×2242(H)mm |
| Weight | About 4000 kg |
| Radiation Level | <1µSv/h |
| Power Supply Voltage | 220V AC, 50Hz |
| Power | 6 kW |
| Spatial Resolution | 10µm |
| X-Ray Tube Type | Enclosed Focal Spot X-Ray Source |
| Tube Voltage | 130kV |
| Focal Spot Size | 7µm (P<4W) |
| Tube Power | 60W |
| Detector | Amorphous Silicon (a-Si) |
| Effective Imaging Area | 427×427 mm |
| Pixel Size | 139µm |
| Pixel Matrix | 3072×3072 |
| Standard CBCT Scan Coverage | 300×280 (φ×H) mm |
| Maximum Permissible Sample Size | 400×600 (φ×H) mm |
| Maximum Payload Capacity | 15 kg |
| Available Modules | Coordinate measurement, design parts/objects comparison, wall thickness analysis, pore inclusion analysis, fiber composite material analysis, extended version pore/inclusion analysis, manufacturing geometry correction, volume grid calculation, structural mechanics simulation, transfer field simulation and other functions. |
