Manufacturer : Ray Tech (Malaysia) Sdn Bhd

Application : Mainly used in all kinds of metal castings, hardware products, plastic products, refractory materials, ceramic body and metal parts welding and other products for non-destructive testing.

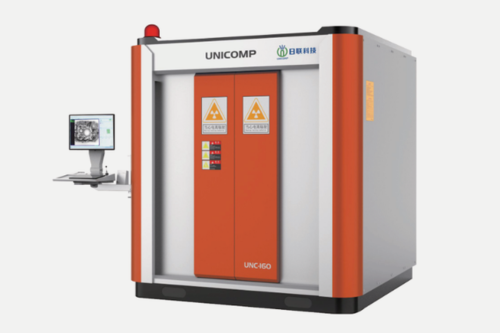

Product Features : A high-performance digital radiography system built around a stable 160kV sealed X-ray tube and an Amorphous Silicon flat panel detector for precise internal defect inspection.

Key Features

1. Features a highly stable 160kV sealed X-ray tube with a 480W power rating and a 0.5mm focus spot size.
2. Outfitted with a premium Amorphous Silicon flat panel detector boasting a massive 3072×3072 pixel matrix and a 427×427mm effective inspection area.
3. Equipped with an electric sliding door and a 360° continuous rotation table that handles a maximum payload capacity of 100kg over a φ600×800mm maximum inspection range.
4. Driven by software supporting automated porosity/void area calculations per unit area, geometric measurement tools (distance, angle, diameter, polygon), and ASTM Standard Spectra comparison.

Mainly used in all kinds of metal castings, hardware products, plastic products, refractory materials, ceramic body and metal parts welding and other products for non-destructive testing.

1. Widespread Applications: Large inspection size and loading weight capacity.
2. Safety Standard: High level protection with international standard, multiple safety set up.
3. Image Processing: Fast image acquisition with high quality and user-friendly design.
4. Highly Testing Efficiency: CNC programmable inspection mode can achieve fast speed.

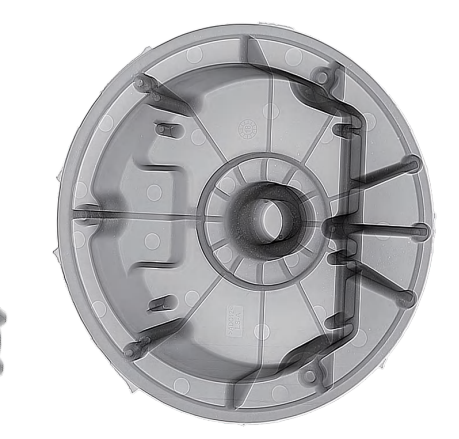

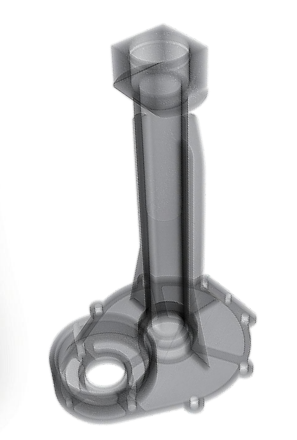

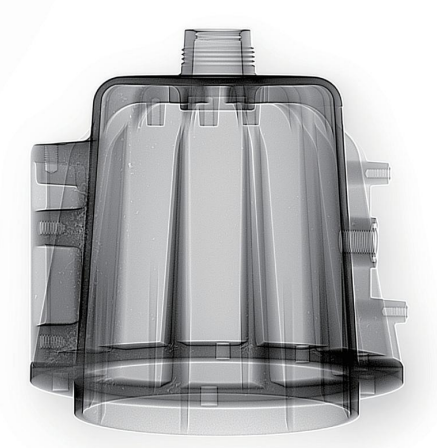

Inspection pictures are highly visible and can visually show the existence of bubbles, cracks, impurities, loose and other internal defects in the casting products.
