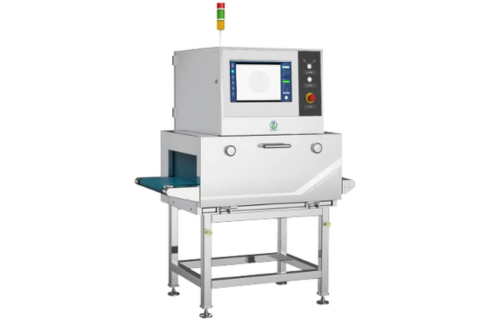

UNX 3015-S
UNX 3015-S
Application : Engineered for smaller retail food packaging where line space is highly constrained but high precision is required.
Description
Manufacturer : Ray Tech (Malaysia) Sdn Bhd
Application :
- Engineered for smaller retail food packaging where line space is highly constrained but high precision is required.
- Perfect for detecting micro-contaminants in single-serve snacks, confectionery packages, and small bakery packs.
- Common industry examples include chocolate bars, individual bags of biscuits, breakfast bread, ham sausages, single-serving snack pouches, and multi-packs of candies.
Key Features
- Easy to Operate: one button start & stop, optional default product.
- Provides high precision automatic foreign material detection. It can effectively detect metal, ceramic, glass, bone, shell and other foreign materials in the product.
- Monitoring, controlling, and improving procedures and outputs in manufacturing with SPC report.
- With deep learning of AI, the detection sensitivity reaches the industry's highest intelligent algorithm standard.

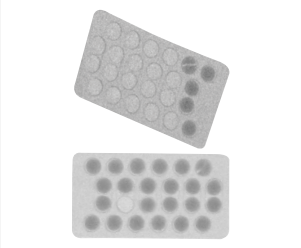

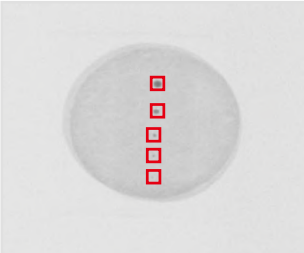

X-Ray Image

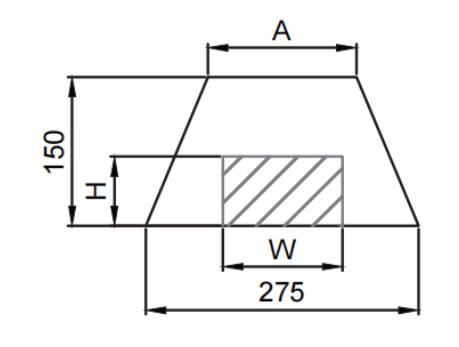

Inspection Area
Maximum object height varies with width across the inspection window (overall channel width 275mm, height up to 150mm):
Inspection Area (H × W)
| Height (H) mm | Width (W) mm |
| 150 | 150 |
| 100 | 190 |
| 50 | 230 |
| 10 | 265 |
| 0 | 275 |
Specifications
| Dimension | 960(W)×870(D)×1900(H)mm |
| Power Supply | AC 110/220V, 50/60Hz |
| Machine Weight | 350 kg |
| X-Ray Voltage | 80kV / 210W |
| Detector | 0.2mm / 0.4mm / TDI |
| Channel Size | 300(W)×150(H)mm |
| Conveyor Speed | 10–70 m/min, 10–40 m/min (heavy load) |
| Max. Loading Weight | 5 kg |
| Operating Temperature | -10°C – 40°C, 30%–90% RH, non-condensing |
| Human Machine Interface | 15.6" touchscreen, Windows 10 operating system |
| Reject Solutions | Conveyor stop, air jet, swiping arm, pushing rod, retracting belt, flipper, etc. |
| Port | 1×LAN, 2×USB |
Detection Accuracy
| SUS Ball | ≥ Ø0.3mm |
| SUS Wire | ≥ Ø0.2×2mm |
| Glass Ball | ≥ Ø1.0mm |
| Ceramic Ball | ≥ Ø1.0mm |
Other
| IP Rating | Conveyor: IP66, Others: IP65 |
| X-Ray Emissions | <1µSv/h |
* Specifications are subject to change without notice. All trademarks are the property of the system maker.
