Product Features : A smart real-time intelligent inventory counter that scans and counts a large 7"×4 multi-reel tape setup or individual reels up to 17" in under 10 seconds, with a certified 99.99% counting accuracy.
Description
Manufacturer : Ray Tech (Malaysia) Sdn Bhd
Product Features
- Ultra-Fast Cycle Time: Scans and counts a large 7"×4 multi-reel tape setup or individual reels up to 17" in under 10 seconds.
- AI-Driven Deep Learning Algorithms: Employs neural network object identification to automatically recognise and count diverse components, processing abstract shapes or irregular spacings without human assistance.
- Anti-Interference Counting: Built with specialised software math to bypass reel stickers, plastic layers, and carrier pocket variations, ensuring a certified 99.99% counting accuracy.
- Integrated Data Eco-System: Built-in intelligent QR/barcode reading system (embedded cameras + handheld scanners) instantly maps material IDs to count data.
- Ergonomic Smart Design: Automated safety door mechanism featuring a physical anti-pinch protection frame to guarantee operator hand safety.
Component Counting Grid

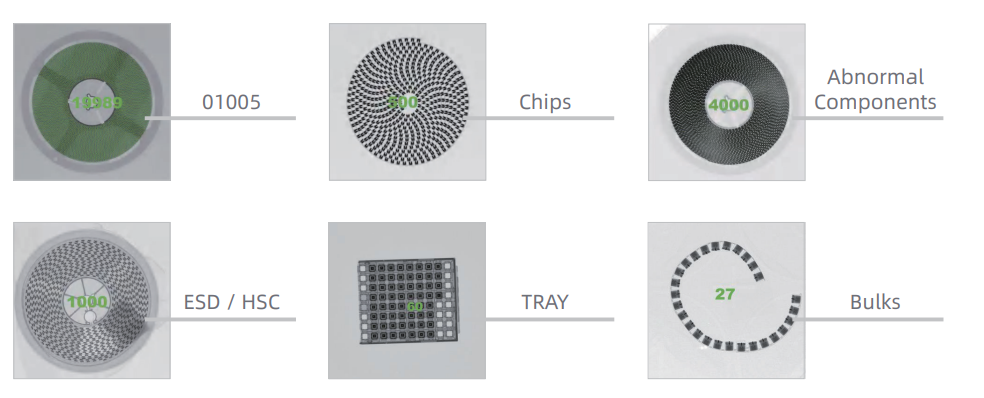

- Reels (99.99% Accuracy): Chips from size 01005, 0201, 0402, 0603, 0805, up to 1206.
- Other Elements: Transistors (99.99%), Bulk/loose elements (99.99%), ESD/HSC Packages (99.9%), Component Tubes (100%), and standard JEDEC Trays (100%).
Application Fields
Reels — Accuracy
| 01005 | 99.99% |
| 0201 | 99.99% |
| 0402 | 99.99% |
| 0603 | 99.99% |
| 0805 | 99.99% |
| 1206 | 99.99% |
Other Components — Accuracy
| Transistors | 99.99% |
| Bulks | 99.99% |
| ESD Packages | 99.9% |
| Tubus | 100% |
| JEDEC Tray | 100% |
| Other Resistance & Capacity | 99.99% |

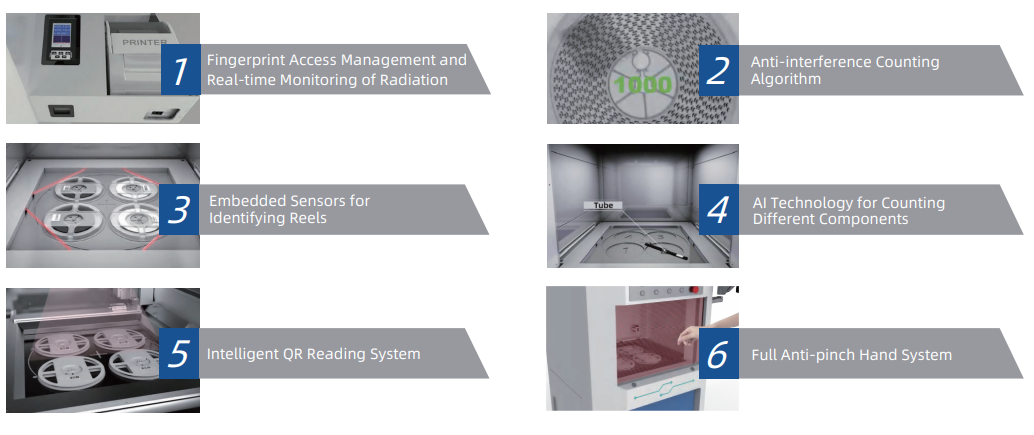

Functions and Features
Inspection Images

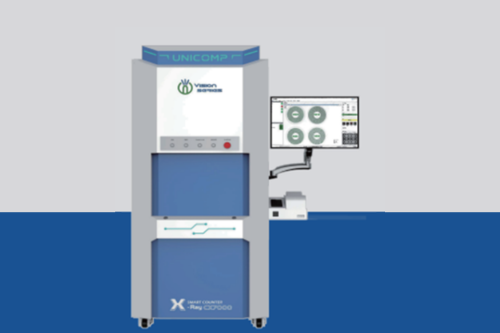

Dimensions and Appearance
System Summary

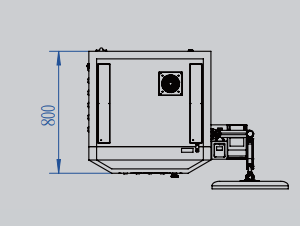

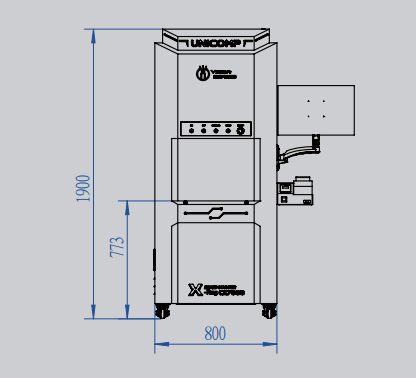

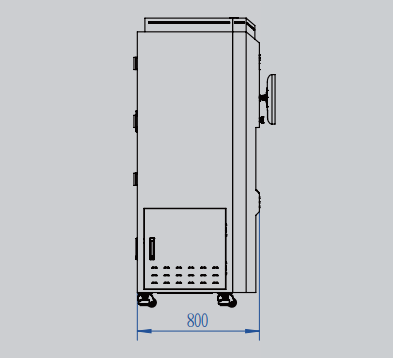

| Footprint | 800(W)×800(D)×1900(H)mm |
| Machine Weight | 780 kg |
| Power Supply | AC 110~220V, 50/60Hz |
| Plywood Packing Size | 1150(W)×1110(D)×2150(H)mm |
| Packing Weight | 980 kg |
| Power Consumption | Max. 1.5 kW |
X-Ray Tube
| Tube Type | Sealed |
| Voltage | 80kV |
| Current | Max. 700µA |
| Focus Spot Size | 0.03mm |
Imaging Detector
| Detector | Flat Panel Detector (FPD) |
| Effective Inspection Area | 430×430 mm |
| Pixel Matrix | 3072×3072 pixel |
| Pixel Size | 139µm |
| Frame Rates | 2 fps |
| AD Conversion | 16 bits |
Inspection Ability
| Tape & Reel Size | 7"–17" |
| Scan Height | ≤80mm |
| Inspection Min. Component | 01005 |
| Inspection Accuracy | 99.99% |
| Inspection Speed | <10s / Tape & Reel (7"–17"); <10s (7"×4 Tape & Reel) |
Industrial PC
| Monitor | 24" FHD LCD Display |
| System OS | Windows 10, 64bit |
| Hard Disk | 256G (SSD) + 1T (HDD) |
| RAM | 16 GB |
| CPU Model | Intel i7 Processor |
| Connectivity | Supports connection with MES, ERP and WMS intelligent storage systems |
Other Features
| Door Open | Auto-door, Anti-Pinch |
| Radiation Monitoring | Safety Protection, Real-time Monitoring of Radiation |
| Accessories | Embedded barcode camera reader, hand-held barcode scanner |
| Feeding Method | Manual |
| X-Ray Safety | ≤0.5µSv/h (Meets All International Standards) |
| Authority Management | Fingerprint Access Management System, and Support Password Accessing |
